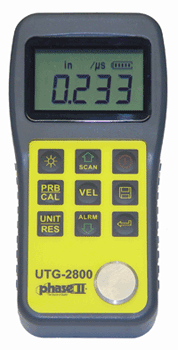

State of the art, digital ultrasonic thickness gauge is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces.
The UTG-2800 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.


Specifications:

Model No. UTG-2800

Display type

4-digit LCD w/Back Light

Minimum display unit

0.001�/0.01mm (selectable)

Measuring Range

starts from 0.040" to 12" in steel w/standard probe

Accuracy

+/- (0.5% thickness + .001�)

Sound velocity range

3280-32805 ft/s (1000-9999m/s)

Upper/Lower Limit Preset Alarm

Yes

Operating temperature

32-122 degrees F

Frequency

5MHz

Update range

4Hz

Memory

20 Groups (100 files/group)

Output

USB

Mini-Printer

Optional

Power supply

3v AA alkaline batteries (2pc)

Battery life

Approx. 100 hours (w/backlight off)

Power consumption

Working current is less than 3V

Dimensions

5.90� x 2.91� x 1.30� (150 x 74 x 33mm)

Weight

8.6oz (245g)


UTG-2800 ultrasonic thickness gauge comes complete with Certificate of Calibration, Operation Manual and Custom Carry Case.
